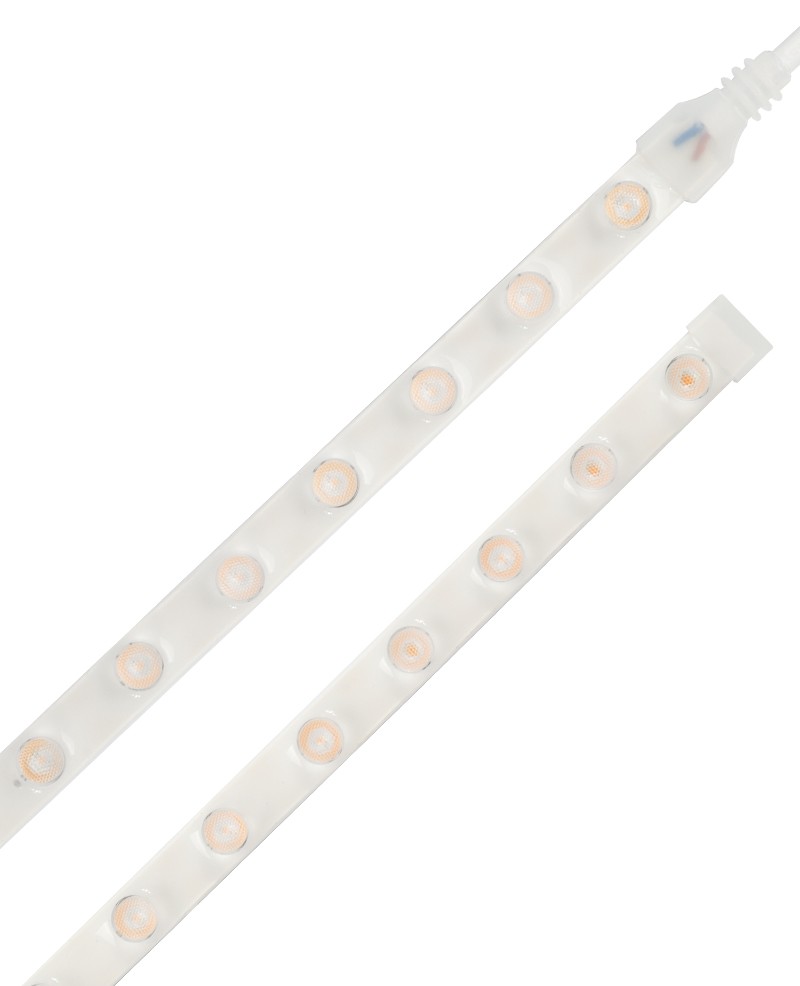

TPU Half tube gluing Flexible wall wash light
Wall wash strip–TPU Half tube gluing
| Product specification | Product model | LED package model | LED | Luminous Angle ° | actuate | Voltage(V) | Number of lights/M | Light | Luminous flux/M±10% | Power/M | ||
| Rendering Index | SDCM | CCT | （LM/W) | |||||||||
| singular | LK-FV2412036283512-XXX-WWWA1405 | 2835 | 80/90 | <3 | 2700-6500K | 15° | Constant voltage | 24V | 36LED/M | 100-110lm/W | 1000-1100lm/M | 12W/M |
| double | LK-FV2412036283512-8CW-WWWA1405 | 3030CW | 80/90 | <3 | 2700+6500K | /30°/ | Constant voltage | 24V | 36LED/M | 100-110lm/W | 1000-1100lm/M | 12W/M |
| RGB | LK-FV2420042303020-RGB-WWWA1405 | 3030RGB | / | / | R:620-630nm | 60°/15×45°/30×45° | Constant voltage | 24V | 36LED/M | R:15lm/W | 510lm/M | 12W/M |
| G:520-530nm | G:85lm/W | |||||||||||
| B:465-475nm | B:30lm/W | |||||||||||
| SPI | LK-FV2420036303020-SPI-WWWA1405 | 3030RGB | / | / | R:620-630nm | Constant voltage | 24V | 36LED/M | R:15lm/W | 510lm/M | 12W/M | |
| G:520-530nm | G:85lm/W | |||||||||||
| B:465-475nm | B:30lm/W | |||||||||||
| DMX512 | LK-FV2420036303020-DMX-WWWA1405 | 3030RGB | / | / | R:620-630nm | Constant voltage | 24V | 36LED/M | R:15lm/W | 510lm/M | 12W/M | |
| G:520-530nm | G:85lm/W | |||||||||||
| B:465-475nm | B:30lm/W | |||||||||||
| singular-Constant current | LK-FC2420042283520-8XX-WWWA2205 | 2835 | 80/90 | <3 | 2700-6500K | Constant voltage IC | 4 | |||||
