| Part No. | IP level | LED type | LED | Driving method | working voltage (V) |
LED/M | Light Efficacy （LM/W) |
Watt/M | PCB | |||||
| Ra | SDCM | CCT | ||||||||||||
| Width (mm) |
Height | Min. Unit | ||||||||||||
| LK-FV2410120283508-XXX-FWS0614 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 120LED/M | 35-40lm/W | 8W/M | 10mm | 2oz | 6LED/cut | 50mm/cut |
| LK-FV2410140283508-XXX-FWS0614 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 140LED/M | 45-50lm/W | 8W/M | 10mm | 2oz | 7LED/cut | 50mm/cut |
| LK-FV2410060505008-RGB-FWS0614 | IP67 | 5050 RGB | / | / | RGB | C.V. | 24V | 60LED/M | / | 8W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| LK-FV2410060505012-SPI-FWS0614 | IP67 | 5050 RGB SPI | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| LK-FV2410060505012-SPI-FWS0614 | IP67 | 5050 RGB SPI | / | / | RGB | C.V. | 24V | 84LED/M | / | 15.5W/M | 10mm | 2oz | 7LED/cut | 83.3mm/cut |
| LK-FV2410060505008-DMX-FWS0614 | IP67 | 5050 RGB DMX | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| LK-FV2410120283508-XXX-FWS0816 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 120LED/M | 45-50lm/W | 8W/M | 10mm | 2oz | 6LED/cut | 50mm/cut |
| LK-FV2410140283508-XXX-FWS0816 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 140LED/M | 45-50lm/W | 8W/M | 10mm | 2oz | 7LED/cut | 50mm/cut |
| LK-FV2410060505008-RGB-FWS0816 | IP67 | 5050 RGB | / | / | RGB | C.V. | 24V | 60LED/M | / | 8W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| LK-FV2410060505012-SPI-FWS0816 | IP67 | 5050 RGB SPI | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| LK-FV2410060505008-DMX-FWS0816 | IP67 | 5050 RGB DMX | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | |||

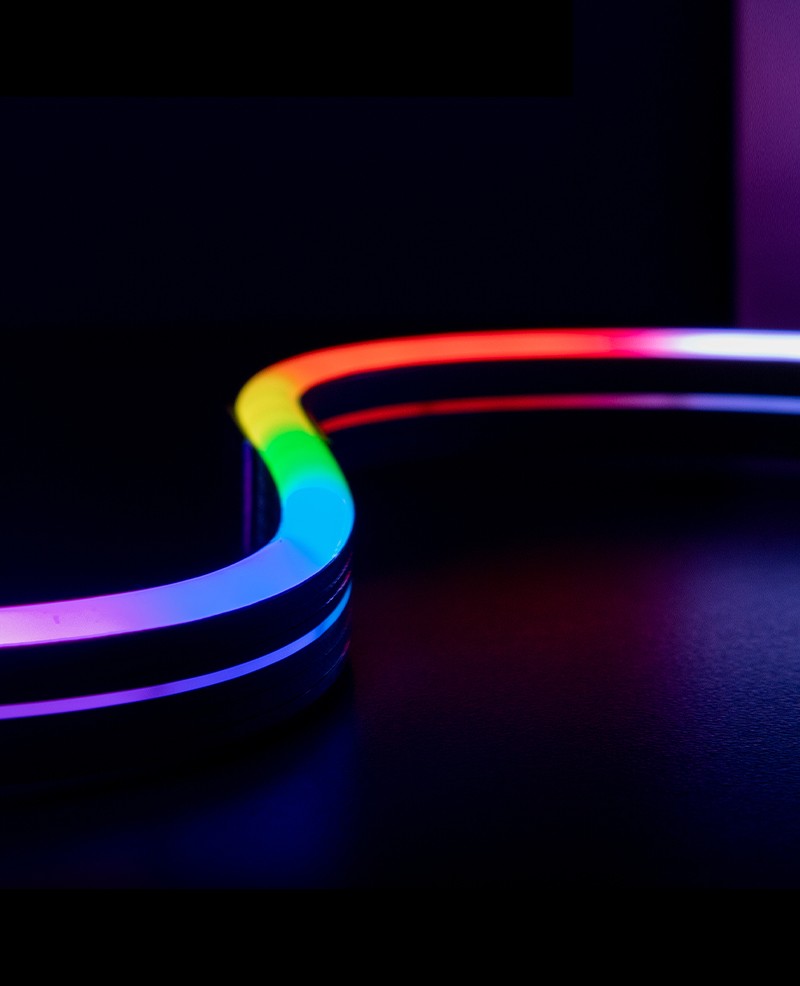

Side Bend Digital Neon Flex
Dimension: 8*16/ 6*14mm for optional
Color: Single color, CCT tunabel, SPI-RGB, DMX-RGB/RGBW for optional
Bending direction: Side bend
Application: Landscape lighting, indoor/outdoor usage, decorative lighting
Warranty: 3years or 5 years for optional
Certificate: CE, UL, RoHs
