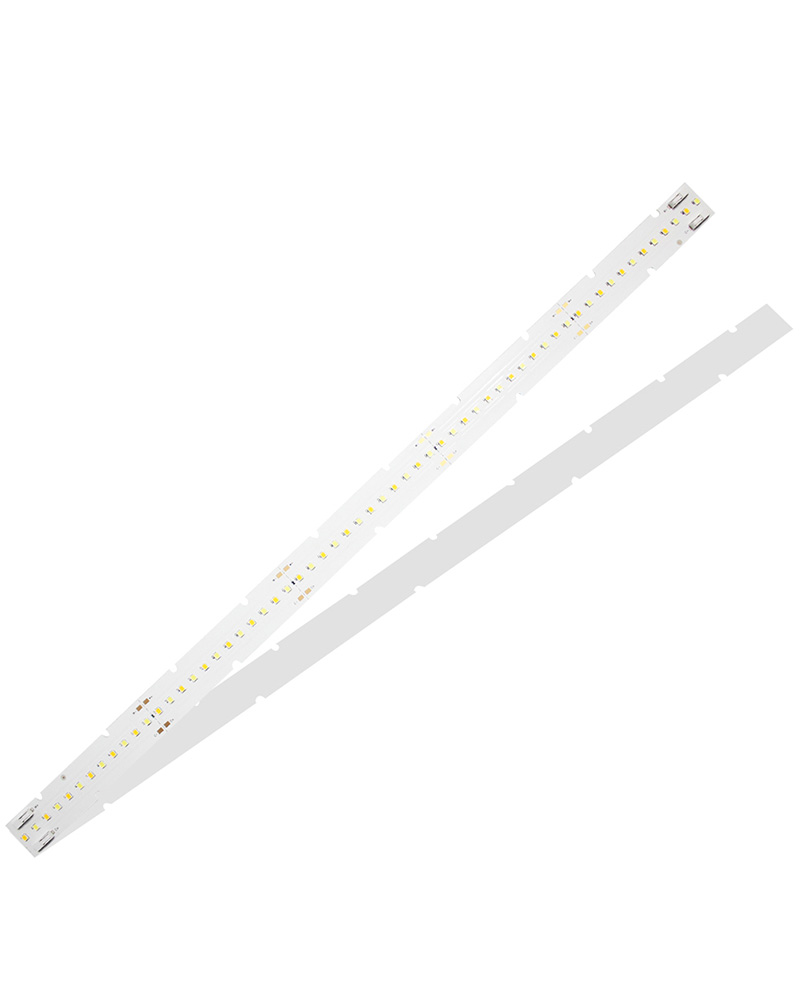

Tunable White Module–24V DC Series
Application:
Panel light
Linear light
Troffer
Wall light
DC Module–Tunable White
| P/N | Power | Input voltage | Current | Efficiency | CRI | CCT | LED | Dimension |
| (W) | (Vdc) | (mA) | (Lm/W) | (K) | (mm) | |||
| LK-VM500x24A0702x5-82757 | 20 | 24 | 400 | 130-145 | 80 | 2700&5700 | 2835*70pcs | 500*24 |
| LK-VM500x24A0702x5-92757 | 20 | 24 | 400 | 130-145 | 90 | 2700&5700 | 2835*70pcs | 500*24 |
| LK-VM500x24A0702x5-V2757 | 20 | 24 | 400 | 130-145 | 98 | 2700&5700 | 2835*70pcs | 500*24 |
