DC Linear Module–High Efficiency Series
Application:
Panel light
Linear light
Troffer
Wall light

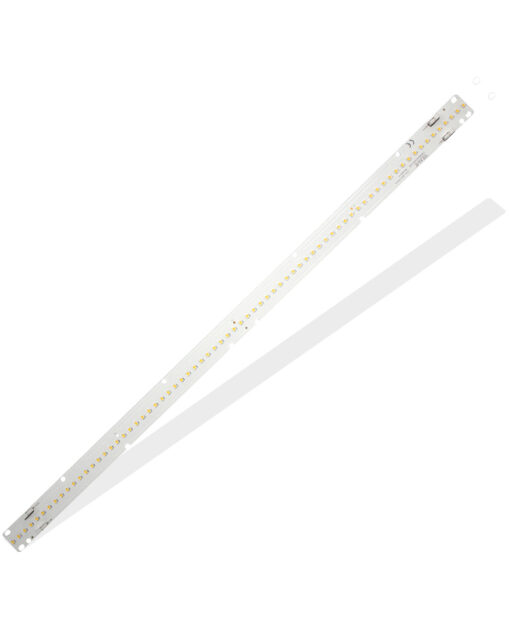

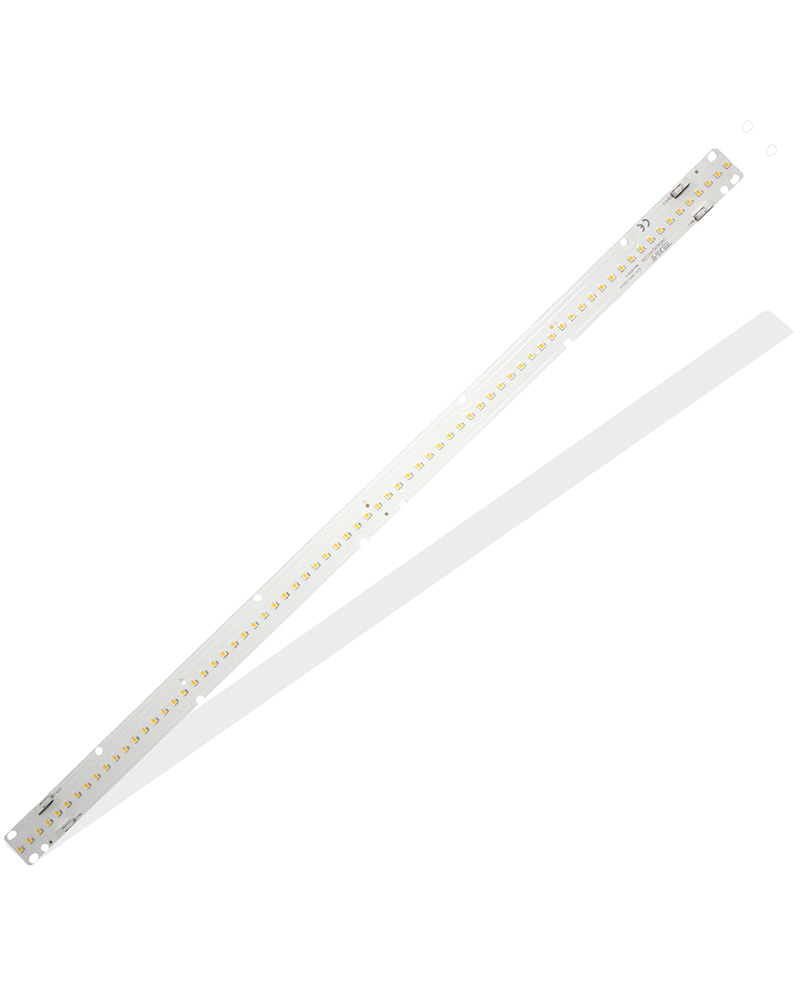

DC Module–Linear
| P/N | Power | Input voltage | Current | Efficiency | CRI | CCT | LED | Dimension |
| (W) | (Vdc) | (mA) | (Lm/W) | (K) | (mm) | |||
| LK-CM70x24A0109H002-8** | 1.5 | 11.6 | 600 | 160 | 80 | 2700-6500 | 2835*9pcs | 70*24 |
| LK-CM140x24A0209H003-8** | 3 | 11.6 | 600 | 160 | 80 | 2700-6500 | 2835*18pcs | 140*24 |
| LK-CM280x24A0409H007-8** | 7 | 11.6 | 600 | 160 | 80 | 2700-6500 | 2835*36pcs | 280*24 |
| LK-CM560x24A0809H014-8** | 14 | 23.2 | 600 | 160 | 80 | 2700-6500 | 2835*72pcs | 560*24 |
| LK-CM280x24A1203H007-8** | 7 | 34.8 | 200 | 160 | 80 | 2700-6500 | 2835*36pcs | 280*24 |
| LK-CM560x24A1206H014-8** | 14 | 34.8 | 400 | 160 | 80 | 2700-6500 | 2835*72pcs | 560*24 |
| LK-CM280x40A1204H007-8** | 7 | 34.8 | 200 | 207 | 80 | 2700-6500 | 2835*48pcs | 280*40 |
| LK-CM560x40A1208H014-8** | 14 | 34.8 | 400 | 200 | 80 | 2700-6500 | 2835*96pcs | 560*40 |
