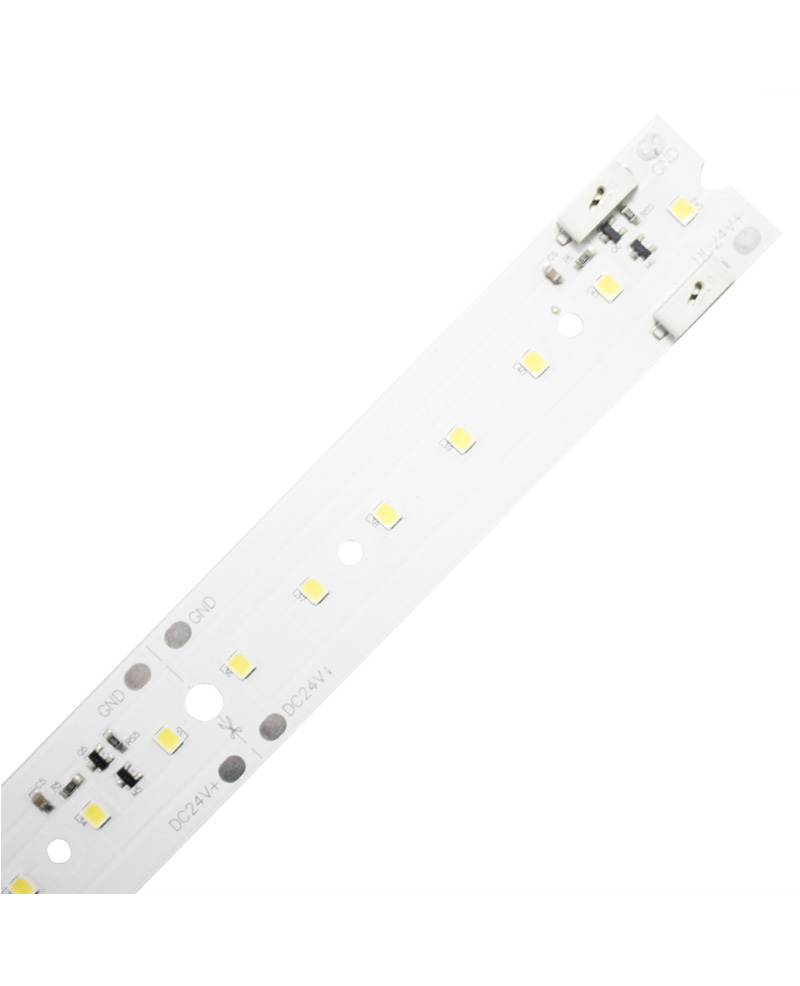

DC Linear Module–24V DC High Efficiency Series
Application:
Panel light
Linear light
Troffer
Wall light
DC Module–High Efficiency
| P/N | Power | Input voltage | Current | Efficiency | CRI | CCT | LED | Dimension |
| (W) | (Vdc) | (mA) | (Lm/W) | (K) | (mm) | |||
| LK-VM600x24A0706H008-8** | 8 | 24 | 330 | 160 | 80 | 2700-6500 | 2835*42pcs | 600*24 |
| LK-VM600x24A0706H016-8** | 16 | 24 | 660 | 140 | 80 | 2700-6500 | 2835*42pcs | 600*24 |
| LK-VM600x24A0712H005-8** | 5 | 24 | 210 | 200 | 80 | 2700-6500 | 2835*84pcs | 600*24 |
| LK-VM600x24A0712H010-8** | 10 | 24 | 420 | 195 | 80 | 2700-6500 | 2835*84pcs | 600*24 |
